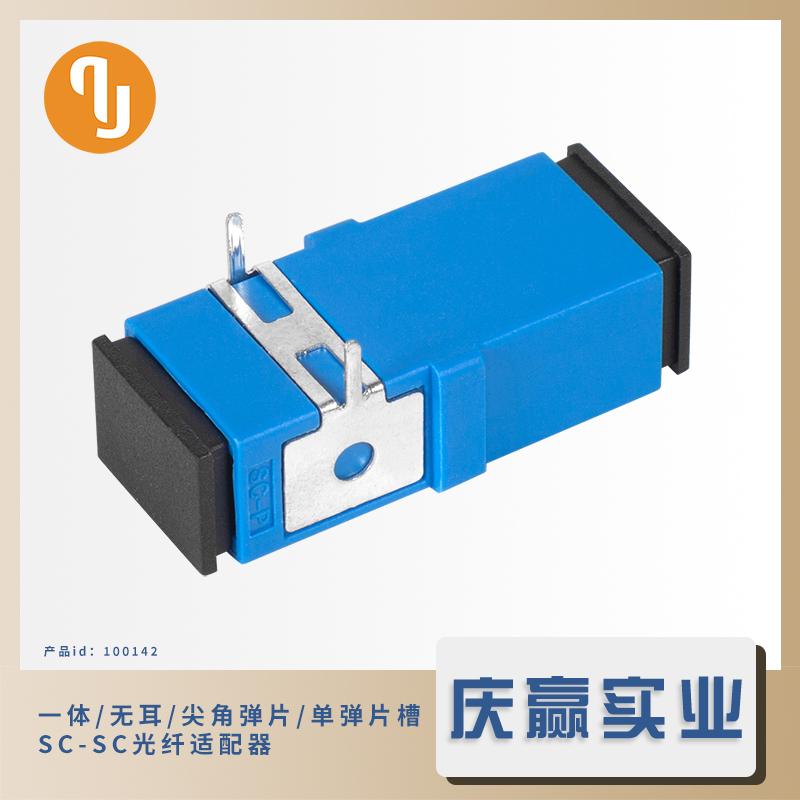

QADSCs-033-UPC/APC_ Integrated, Short-ears, pointed-edge shrapnel, single shrapnel slot optical adapter

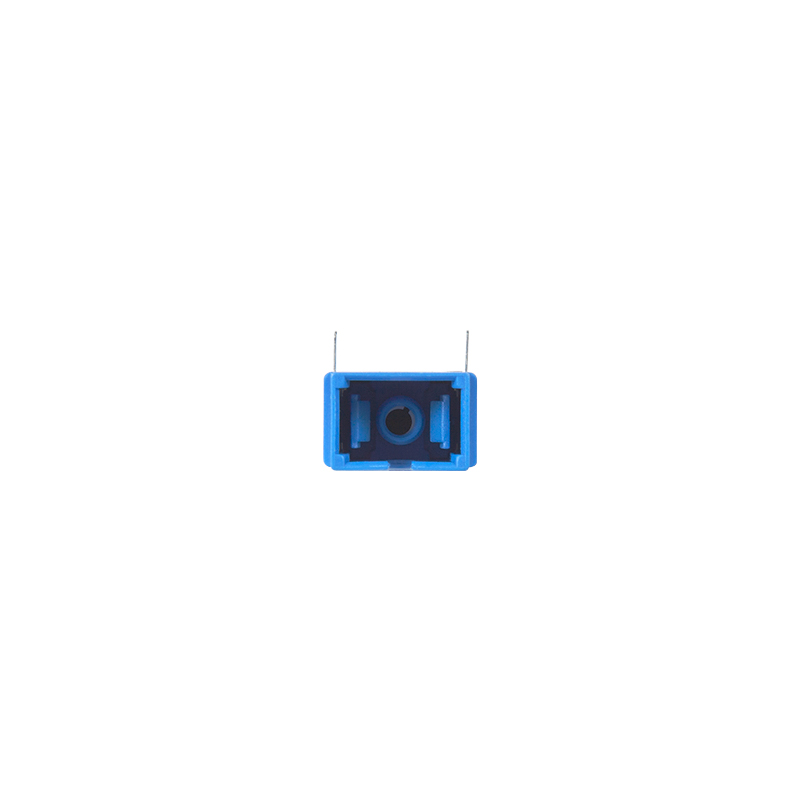

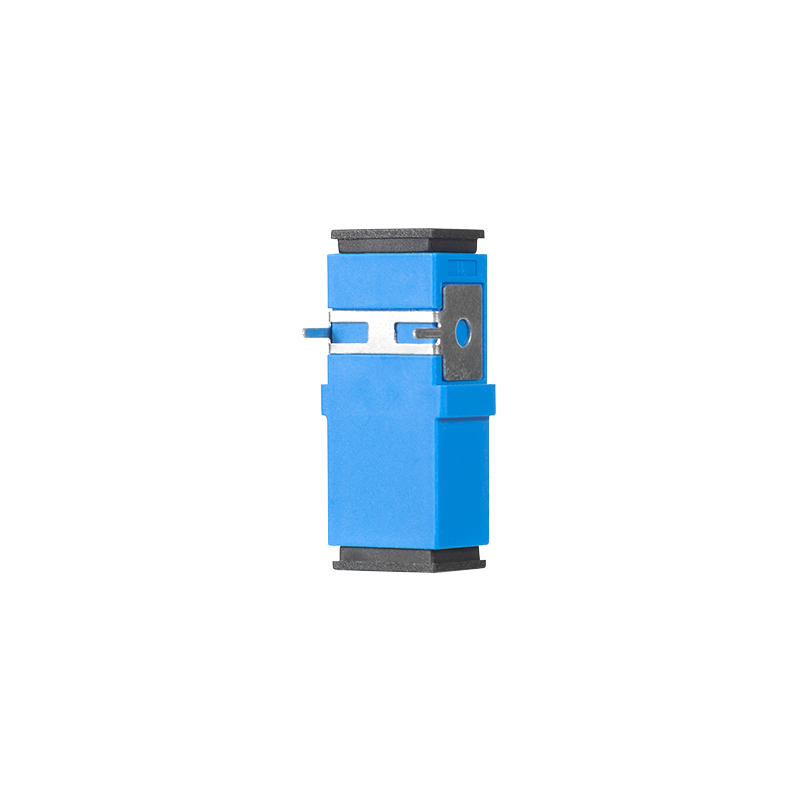

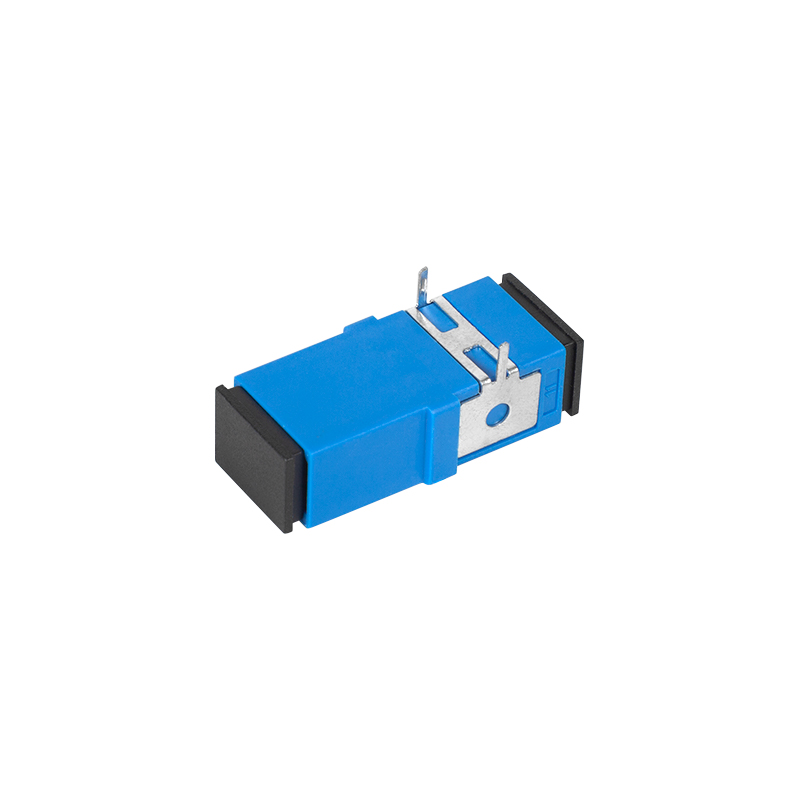

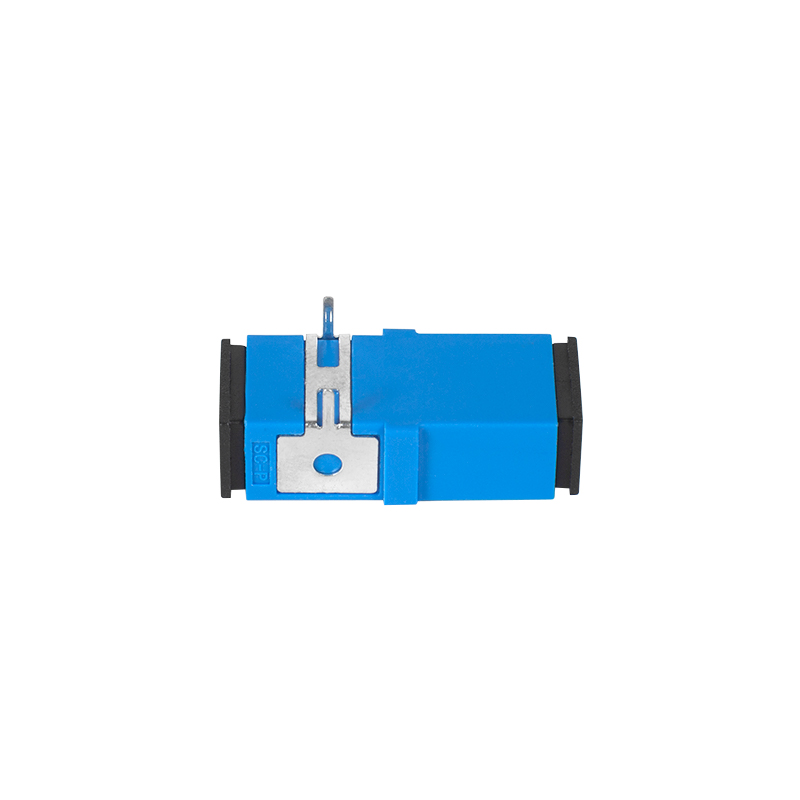

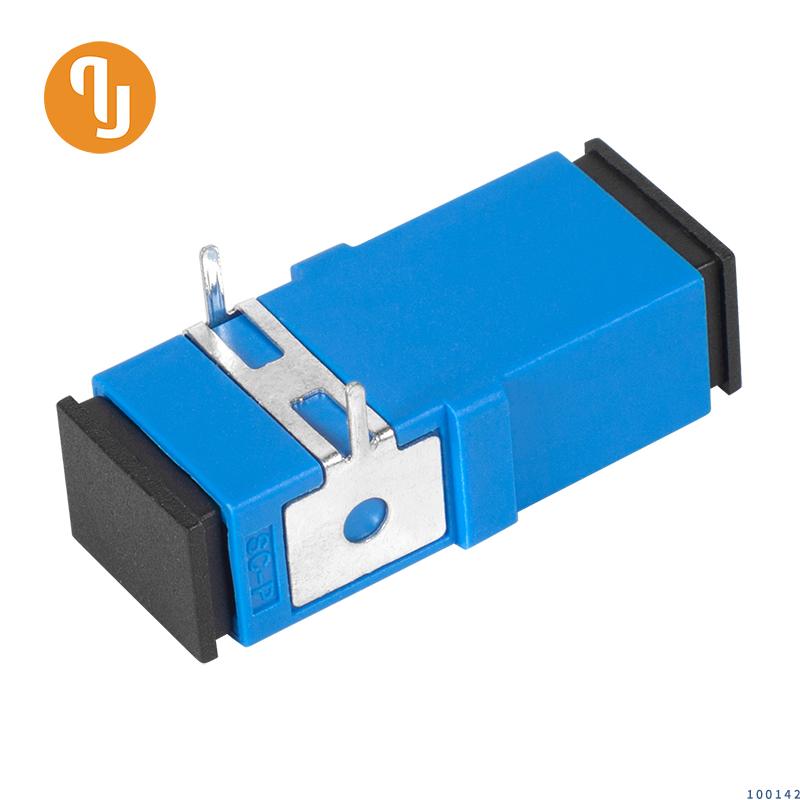

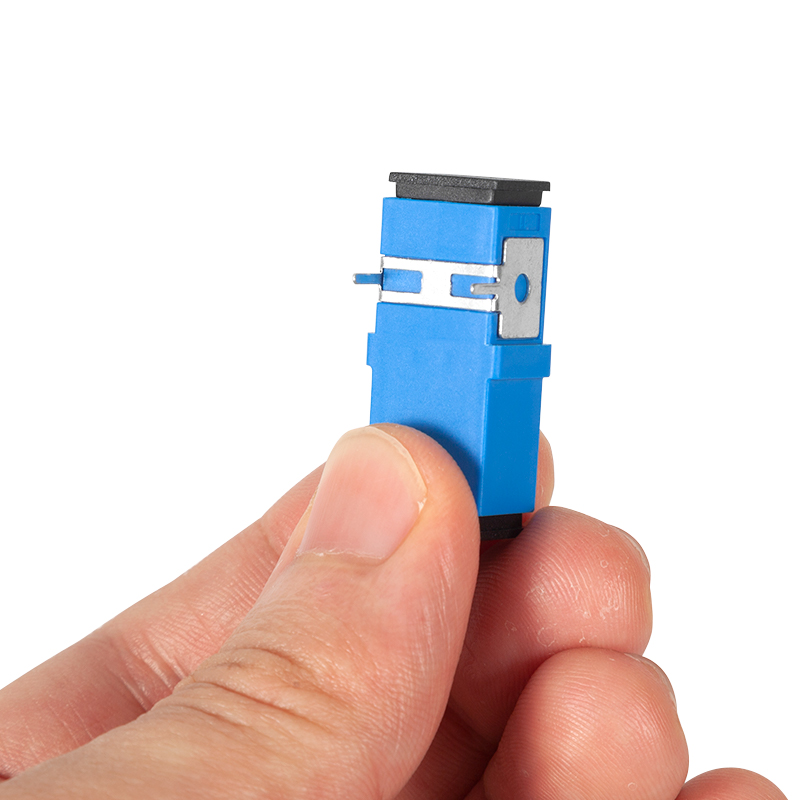

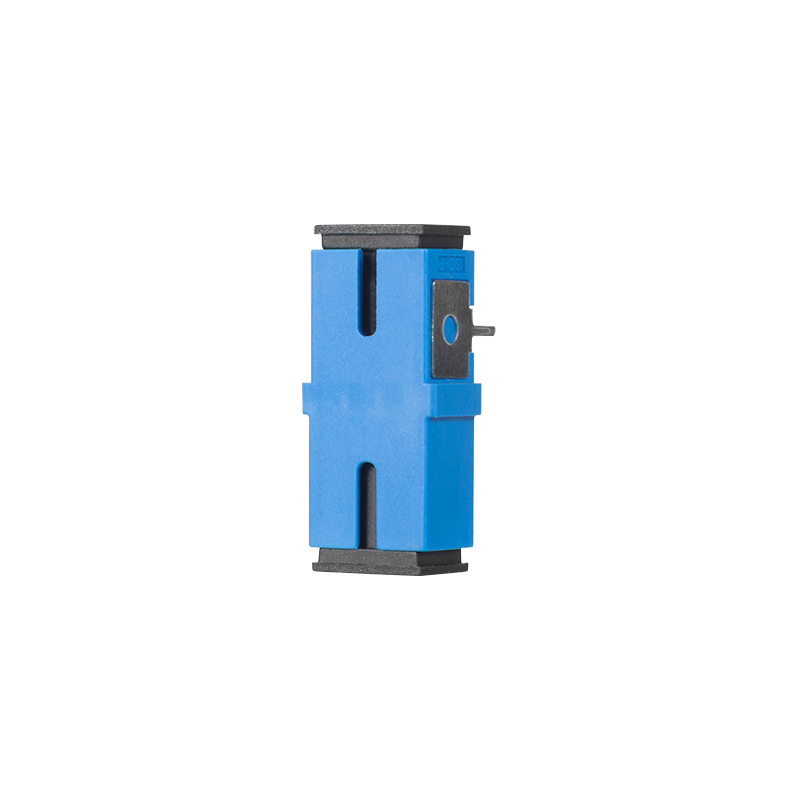

QADSCs-033-APC/UPC Whole housing, Short-ears, 2 PCB pins, Single mode Optic Fiber Adapter

1.Product Position

Single-mode APC/UPC 2 PCB pins whole housing fiber optic adapter, specially designed for high-density patch panels, fiber distribution boxes, and miniaturized terminal boxes, featuring both quick insertion and long-term stability.

2. Structure

• Whole housing Shell: Short-ears design, reduces space occupation and avoids the risk of ear clip breakage.

• 2 PCB Pins: Single pin structure provides precise clamping force, with Tin plated, suitable for PCB connections.

• Short-ears Outer Frame: Compatible with many panels, enabling side-by-side dense installation.

• APC/UPC: Insertion loss ≤ 0.2 dB @1260~1650nm

3. Technical Specifications

4. Application Scenarios

• FTTH fiber distribution boxes, corridor boxes

• 1U/2U high-density data center patch panels

• 5G frontal ODFs, outdoor integrated cabinets

5. Packaging and Ordering

• Standard Packaging: 100 pieces per bag, 1000 pieces per box

• Model Code: QADSCs-033-APC/UPC (s=short ears, if no-s means standard long ears)

• Optional Accessories: Dust cap, Installation clip (available separately)

6. Warranty and Services

• 100% three-wavelength optical inspection upon factory delivery

• 1-year warranty, lifetime technical support

Get this Whole housing, shot-ears, sharp-edge clip-on" adapter immediately and make your fiber optic connections more compact and reliable!
